Using Zello Bridge With Radio Gateways

This article is written for: Zello Work Zello Friends & Family.

Bridge connects traditional two-way radios with Zello’s powerful push-to-talk (PTT) solution, enabling seamless cross-platform communication so teams can use both the hardware and software that’s optimized for their unique operational environment.

Bridge runs quietly in the background, ensuring non-disruptive interoperability between radio users and Zello. Its latest release expands capability to include both USB and JPS gateways, as well as provides an updated management UI for more friendly and accessible usage.

Networks that have historically utilized Zello’s legacy PC app will find Bridge a vital tool in their communications ecosystem. Zello plans to sunset the legacy PC app in the near future, so we highly recommend migrating to Bridge as soon as possible to ensure you’re receiving the best support and most updated product.

If you’re an existing legacy PC app user, see this section for assistance migrating from the legacy PC app to Zello Bridge.

Compatibility

This application is compatible with USB and JPS gateways. While both gateway types connect radios with communications software, they differ in how they transmit audio; USB gateways require direct USB connection to a PC, whereas JPS gateways generally transmit messages using Radio Over IP (RoIP) technology, meaning audio is delivered via an internet connection.

Common models of these gateways include:

Tables can't be imported directly. Please insert an image of your table which can be found here.

Please note that while above-listed JPS gateways require utilization of Zello Bridge, newer JPS gateway models include updated firmware that enables connection via the JPS management interface.

For example, JPS gateways like the ACU-Z1 and RSP-Z2 already have the Zello Chanel API integrated. While they’re compatible with Bridge, they don’t require it. See this JPS documentation for more information.

Bridge is only compatible with channel communications. Because it relies on Zello’s channel API, it can’t be used for 1:1 messages. It’s currently exclusively available in a x64 bit package.

How it Works

Bridge expands Zello’s functionality beyond traditional Android and iOS operating systems, allowing devices operating on proprietary firmware to integrate with the Zello infrastructure.

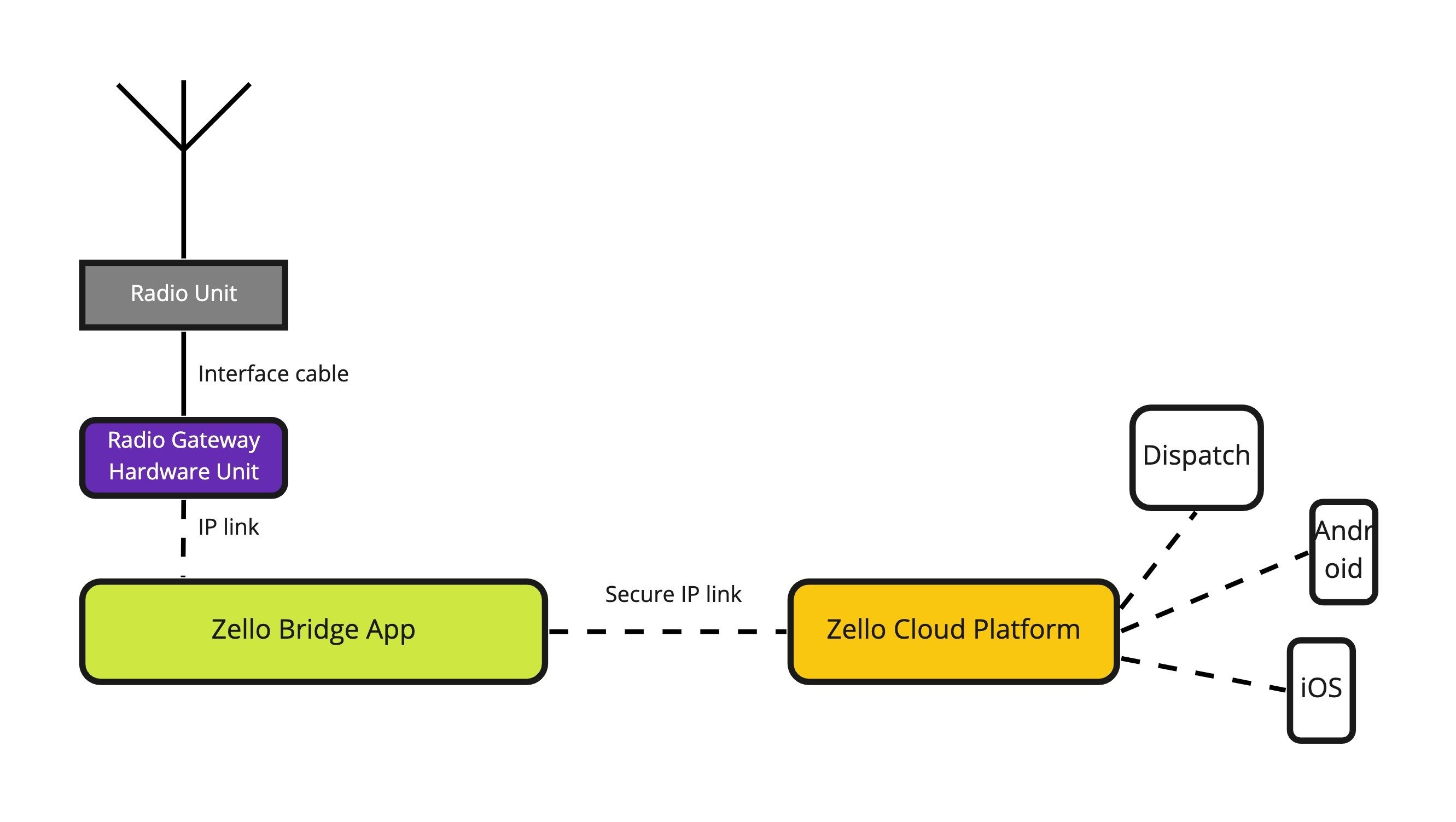

When configured with either a JPS or USB gateway,  Bridge connects two-way radios with Zello, enabling smoother, more tailored PTT communications. It reads a 2-level structure from the configuration file: links and connectors.

  • Links share the audio streams between connectors. They’re what ensure communications are transmitted from one connector to the other (i.e. from Zello to your team’s radios).

    While links are dependent on their designated connectors, they don’t interact with other links. Each link will have at least two connectors—the Zello API, the JPS gateway, or the USB gateway —and additional, platform-specific configuration attributes that dictate Bridge’s configuration.

    Bridge easily supports up to 16 links.

  • Connectors are the endpoints you’re connecting using Bridge—for example, Zello’s channel API and a USB gateway. There are three possible endpoints: the Zello channel API, a USB gateway, or a JPS gateway. Each link includes at least two connectors; connectors are required attributes of a link's configuration.

Status Page

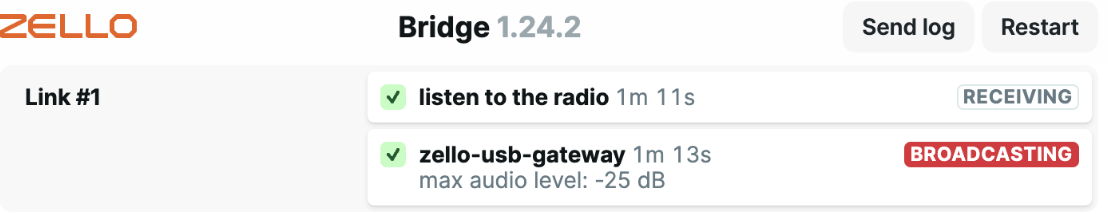

One of Bridge’s strengths lies in your ability to monitor its status through a webpage, providing access to real-time updates on your system’s performance. Once you’ve configured your links, their status will be displayed on the dashboard, offering targeted insight into the operations of each of your links and their associated connectors.



The status page is configured under the REST server section of the configuration file. It's accessible through port :8810.

Setup

In this article, we'll walk through configuring your instance of Zello Bridge (see step 1 and step 2). Additionally, we'll provide context for errors you may receive when using Bridge. If you have questions at any point in this process, please don't hesitate to contact our team at paidsupport@zello.com.

Please note: Zello communicates on multiple domains and subdomains—including zellowork.io. If you experience connectivity issues, consider allowing access by domain name. Please contact our team for a full list of available domains/subdomains.

Step 1: Install Bridge

  1. Click this link to download Bridge's installation package (version 1.28.1).

  2. Run the installation package on your computer. Once installed, Bridge will automatically launch.

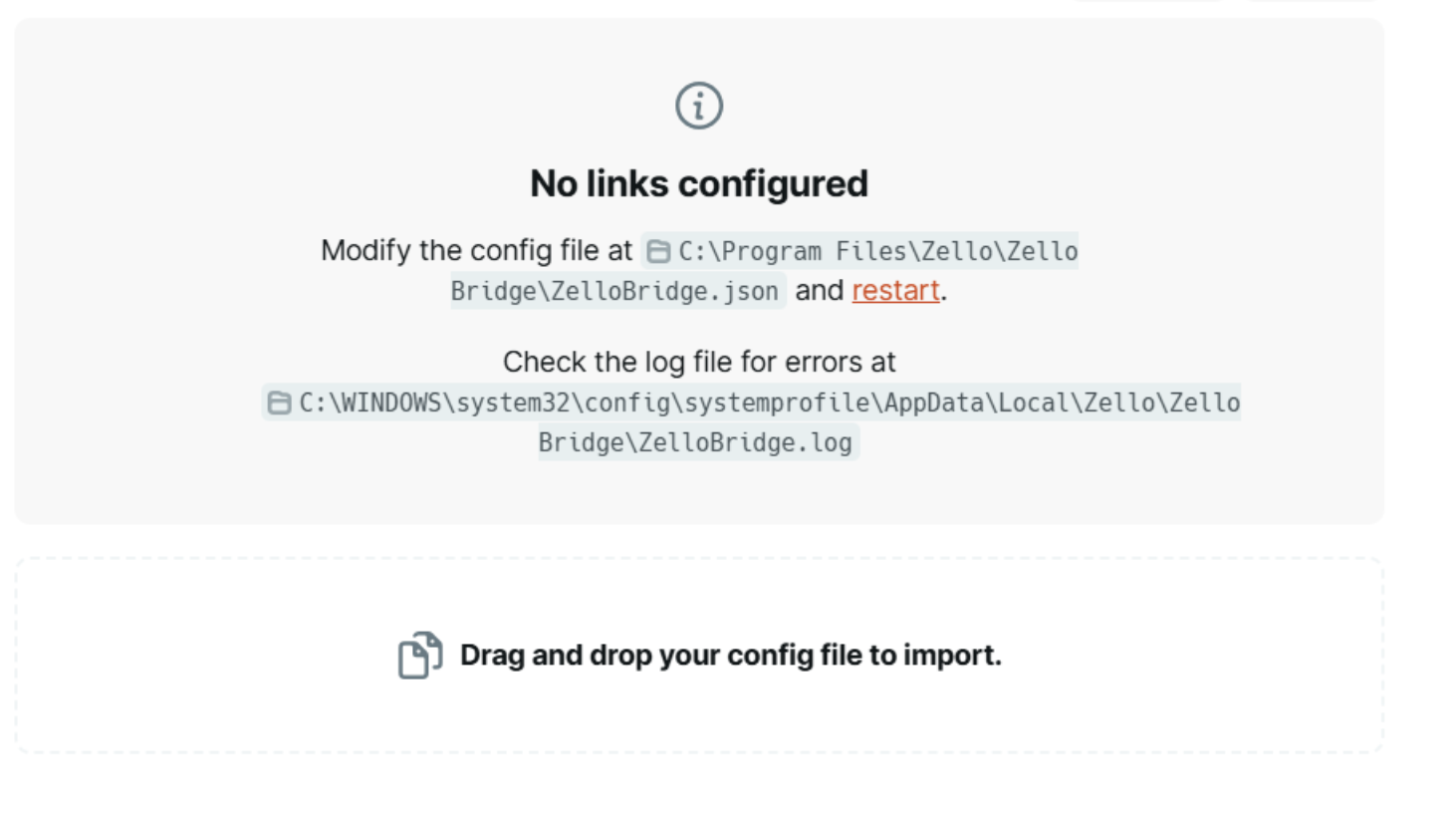

  3. Open your browser of choice and type 127.0.0.1:8810 in the address bar. This will take you to Bridge's status page, which indicates a successful installation.

Step 2: Configure Bridge

Please note: If your network currently uses Zello’s legacy PC app, skip this section and instead refer to the Migration From the Legacy PC App section. The migration process is different (and slightly easier) than the initial configuration process for legacy PC users currently operating with a gateway setup.

Once you’ve installed Bridge, it is time to edit your configuration file. Configuration files include a few key components:

  • The REST server status page (:8810)
  • Links
  • Log location

Configuration files are included in your Bridge installation package, but please note that you'll need to manually configure the links yourself. To find and edit your configuration file:

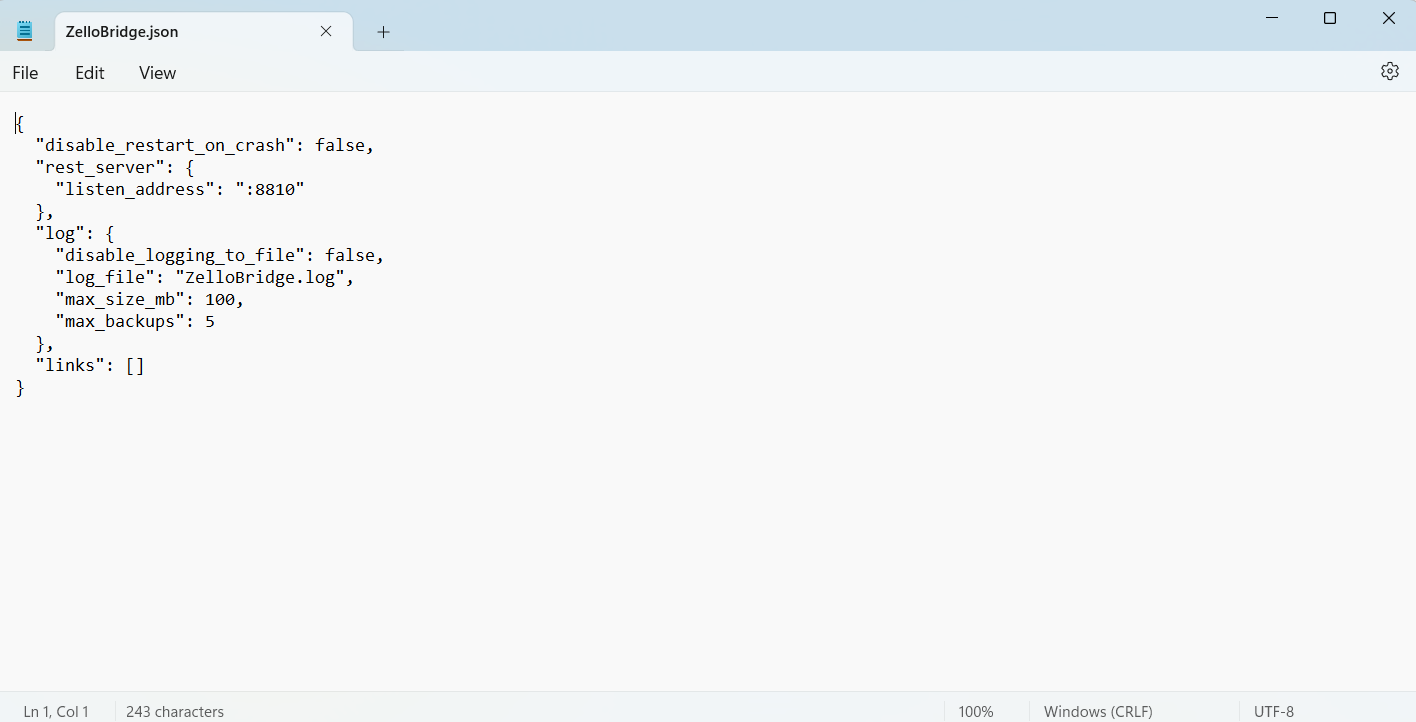

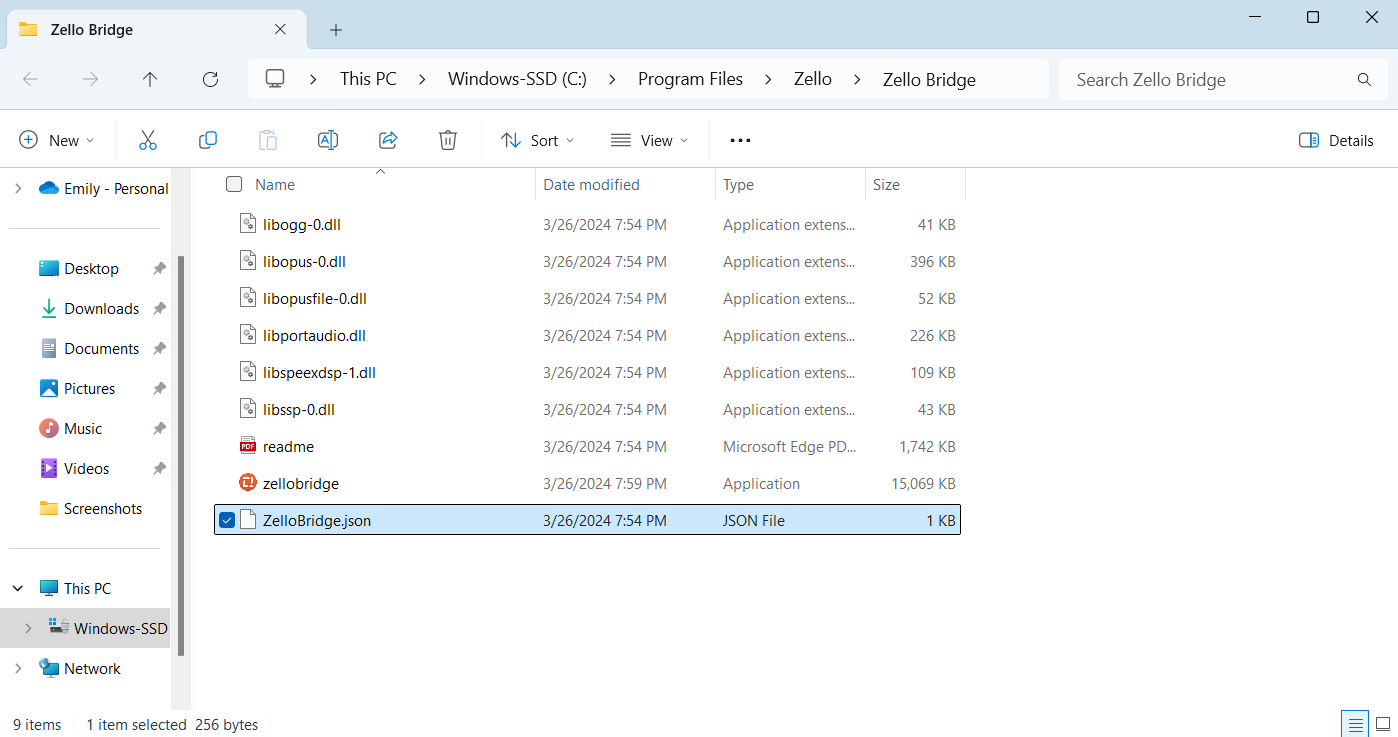

  1. Locate a file named zellobridge.json on your computer. It’ll likely be present in the Program Files\Zello\Zello Bridge folder, which was downloaded as part of the Bridge installation package.



  2. Open the file in a text editor such as Notepad.


  3. Edit the configuration file's links to meet your network’s requirements according to the instructions provided in this section.

    Please note that the only information you'll likely need to adjust in the configuration file is that pertaining to links (and consequently, their connectors).

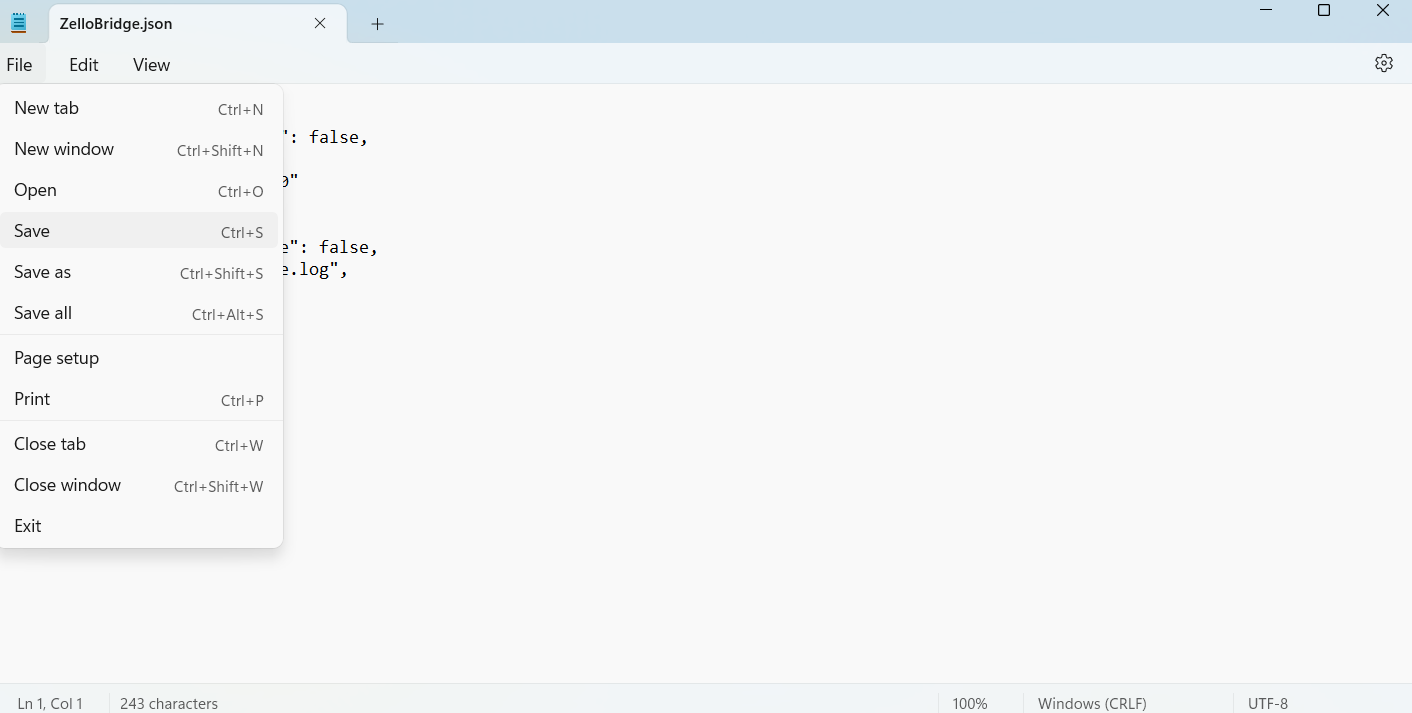

  4. Save the configuration file.


  5. Open your browser and go to http://127.0.0.1:8810. Then, click Restart. Your configured links and their respective statuses will be listed on the homepage .

Editing the Configuration File

Tables can't be imported directly. Please insert an image of your table which can be found here.

Zello Bridge will connect the endpoints established in your configuration file. This file will include 1 or more links, each of which have two or more connectors.

Please note that links operate independently from each other, meaning link #1 will not impact link #2. Each configuration file can include up to 16 links.

Connectors are nested under links. They're the communication endpoints you'd like to connect.

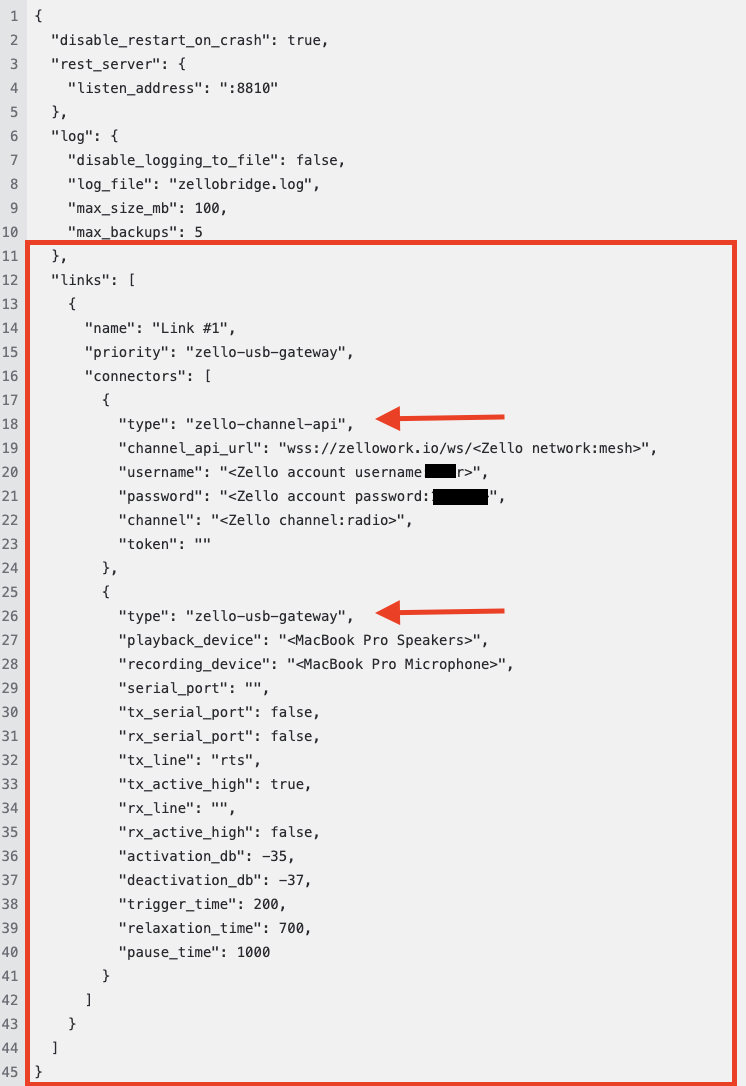

To demonstrate, we’ve highlighted the links segment of an example configuration file connecting a USB gateway with the Zello Channel API. You’ll notice that there are two connectors associated with the link, as dictated by the two type attributes:

  • zello-usb-gateway
  • zello-channel-api



We’ve included an example configuration file in the Downloads section of this article to reference as you build your own file.

Please remember: The configuration file that's included in Bridge's installation package requires manual link configuration. This ensures you're able to connect your specific technologies. See the Configuring Links section below for more information.

Configuring Links

Link configuration requires three components:

Tables can't be imported directly. Please insert an image of your table which can be found here.

  1. Link name
  1. Priority

The value of the Priority field should be one of the connector types.

We recommend setting your gateway—either jps-roip or zello-usb-gateway—as the priority.

  1. Connector

The connector field specifies the endpoints you’re connecting with Bridge (e.g. the Zello channel API and your gateway).

This field is a collection. For more information on its configuration, see the Configuring Connectors section below.

Configuring Connectors

There are 3 possible connector types:

  • zello-channel-api
  • jps-roip
  • zello-usb-gateway

Each connector has its own set of configuration parameters. As a reminder, each link will have at least two connectors.

Please see the drop-downs below for a list of each connectors' attributes. The attributes associated with your intended setup should be added to your .pttconfig file. If any of the parameters included in the tables are not applicable to your setup (for example, those pertaining to VOX or Zello Friends & Family), exclude them from your file.

Please note: When connecting the Zello Channel API, you’ll be required to add a username and channel name to the configuration file. You should create a new user from the management console that’s exclusively used for the link you’re configuring. Then, you’ll want to add that user to the channel you’re connecting to the gateway.

Tables can't be imported directly. Please insert an image of your table which can be found here.

Parameter What is it? Example Value

The connector’s name.

If left blank, the channel name (configured below) will appear on the status page.

This is the entry point for Zello’s channel API.

The format for this value is:

wss://zellowork.io/ws/yournetworkname

My network name is zello1234.

I’d accordingly populate this parameter with:

wss://zellowork.io/ws/zello1234

The name of your network’s channel you’d like to connect to the gateway.

Please note that the channel must be pre-existing by this step. For information on creating channels, see this article.

Username of an existing user profile. See this article for assistance creating a new user.

This username should be created specifically for the link you’re setting up. Please note that the username cannot be in use on another device or in another Zello Bridge link. It should be created for a single, specific link.

Ensure this user has been added to the channel you’ve assigned in the attribute above.

*Not required for Zello Work accounts.

This field is only applicable to Zello Friends & Family users. See this documentation for assistance creating a token.

Tables can't be imported directly. Please insert an image of your table which can be found here.

Parameter What is it? Example Value

Size of the jitter buffer in packets.

This value is measured in 100ms packets. The default value is 10, which equates to 1 second of buffered audio.

If you experience breaking audio, consider increasing this value. Alternatively, decrease the value to reduce delay.

true false

Tables can't be imported directly. Please insert an image of your table which can be found here.

Parameter What is it? Example Value

The operating system-assigned name of the connected gateway’s playback device.

To find this, go to Start > Settings > System > Sound on your Windows computer.

The operating system-assigned name of the connected gateway’s recording device.

To find this, go to Start > Settings > System > Sound on your Windows computer.

The operating system-assigned name of the connected gateway’s serial port. The serial port name can be found in your Device Manager.

If your device doesn’t have a serial port, leave this field empty.

True if the gateway utilizes the serial port line state to start and stop TX message transmission (to radio). This means the tx_line and tx_active_high are in use.

False if VOX is active.

True if the gateway sets serial port line state to start and stop RX messages (from radio). This means rx_line and rx_active_high are in use.

False if VOX is active.

The supported values for this parameter are RTS and DTR.

This field is dependent on the gateway in use. Please refer to your gateway’s manual for more information.

The supported values for this parameter are CTS, DSR, RING, and CD.

This field is dependent on the gateway in use. Please refer to your gateway’s manual for more information.

Set this value to True if the active signal level is high. Set it to Fale if it’s not high.

This field is dependent on the gateway in use. Refer to your gateway’s manual for more information.

Set this value to True if the active signal level is high. Set it to Fale if it’s not high.

This field is dependent on the gateway in use. Refer to your gateway’s manual for more information.

The sound level at which Bridge will activate transmission.

The accepted values range from -80db (lowest) to 0db (highest).

The sound level at which transmission is deactivated.

This cannot be set higher than the activation threshold, and it’s best to set it between 3 and 5db lower.

For example, if your activation level is set to -35db, set the deactivation to -37db.

The amount of time (in milliseconds) VOX takes to start transmission.


Increasing the trigger time will help eliminate false transmissions caused by short impulses.

The amount of time (in milliseconds) the gateway waits between transmission of two messages.

This setting helps prevent overlapping messages. Only applicable to VOX messages.

The length in milliseconds of a loud, single-tone signal Bridge inserts before every VOX message. This ensures the radio recognizes the new transmission.

Only applicable if tx_serial_port is false and VOX is active.

Additional Information for JPS Gateways

Once you've created your Bridge configuration file, you'll also want to add a connection profile matching JPS RoIP connector configurations in your JPS radio gateway management interface. Use the following values for reference:

Tables can't be imported directly. Please insert an image of your table which can be found here.

For detailed instructions about configuring JPS radio gateway hardware, please refer to your JPS product documentation.

Configuration Demo Video

For further assistance with configuring Bridge, please reference this video.

Migration From the Legacy PC App to Zello Bridge

Please note: Zello will decommission its legacy PC app in the near future. As such, we strongly encourage users to migrate their data to Zello Bridge for the most updated, feature-rich product.

Those currently utilizing the legacy PC app can easily migrate their gateway setups to Zello Bridge using the import wizard. This tool simplifies the process of copying your existing USB gateway configurations into Bridge.

If utilizing the import wizard, ensure your USB gateway device and serial port are connected before proceeding to step 1. Please note that the following steps should be performed on the device the legacy app is currently installed on.

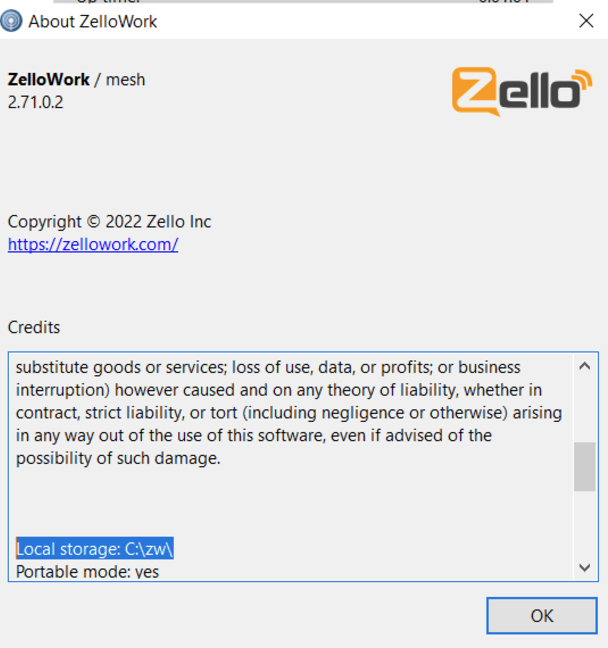

  1. Locate the configuration file using the following method. Go to Help > About Zello Work. Scroll about halfway through the credits screen until you see the Local storage pathway.

    Follow this pathway on your device to locate the legacy PC app’s settings file. It will be named ptt.config
  2. Sign out of the legacy app (Status > Sign Out). This will ensure Zello Bridge is able to access all necessary hardware.

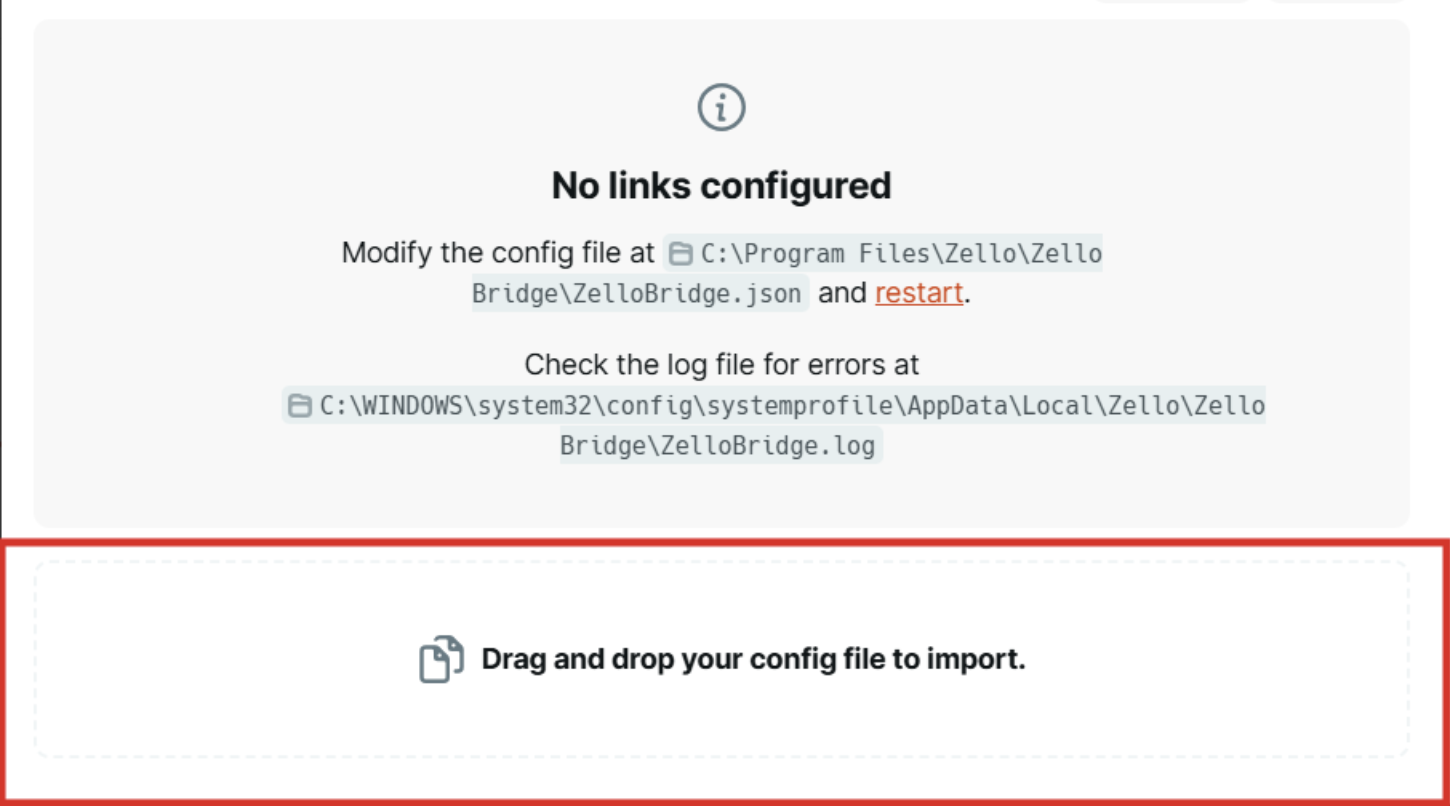

  3. Drag and drop the settings file into the designated area on the Zello Bridge status page (http://localhost:8810/)

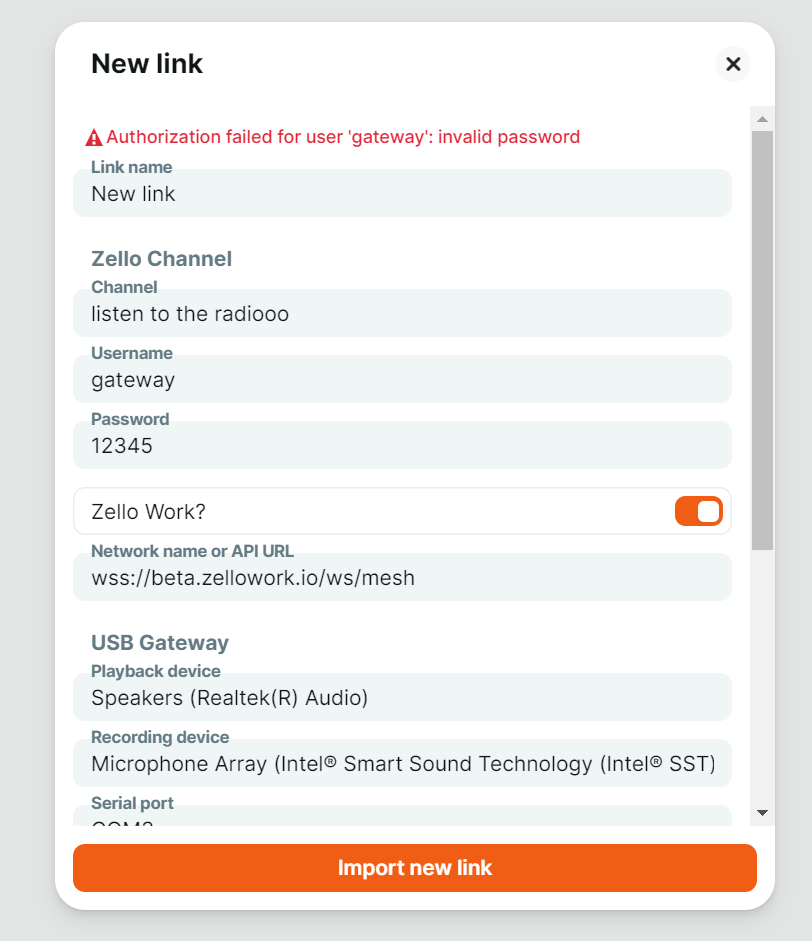

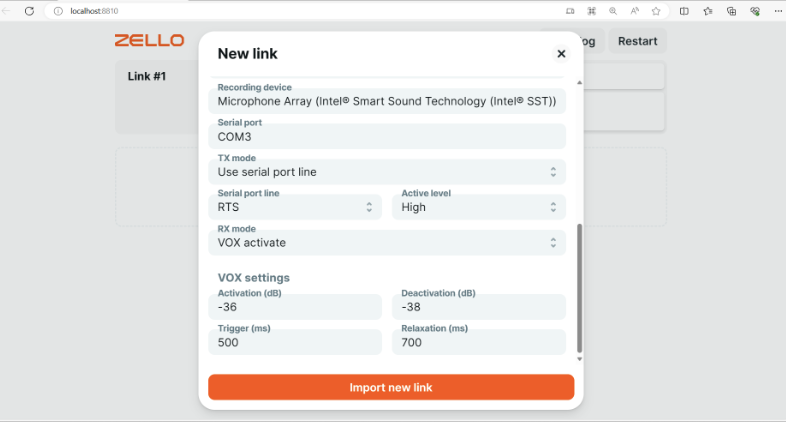

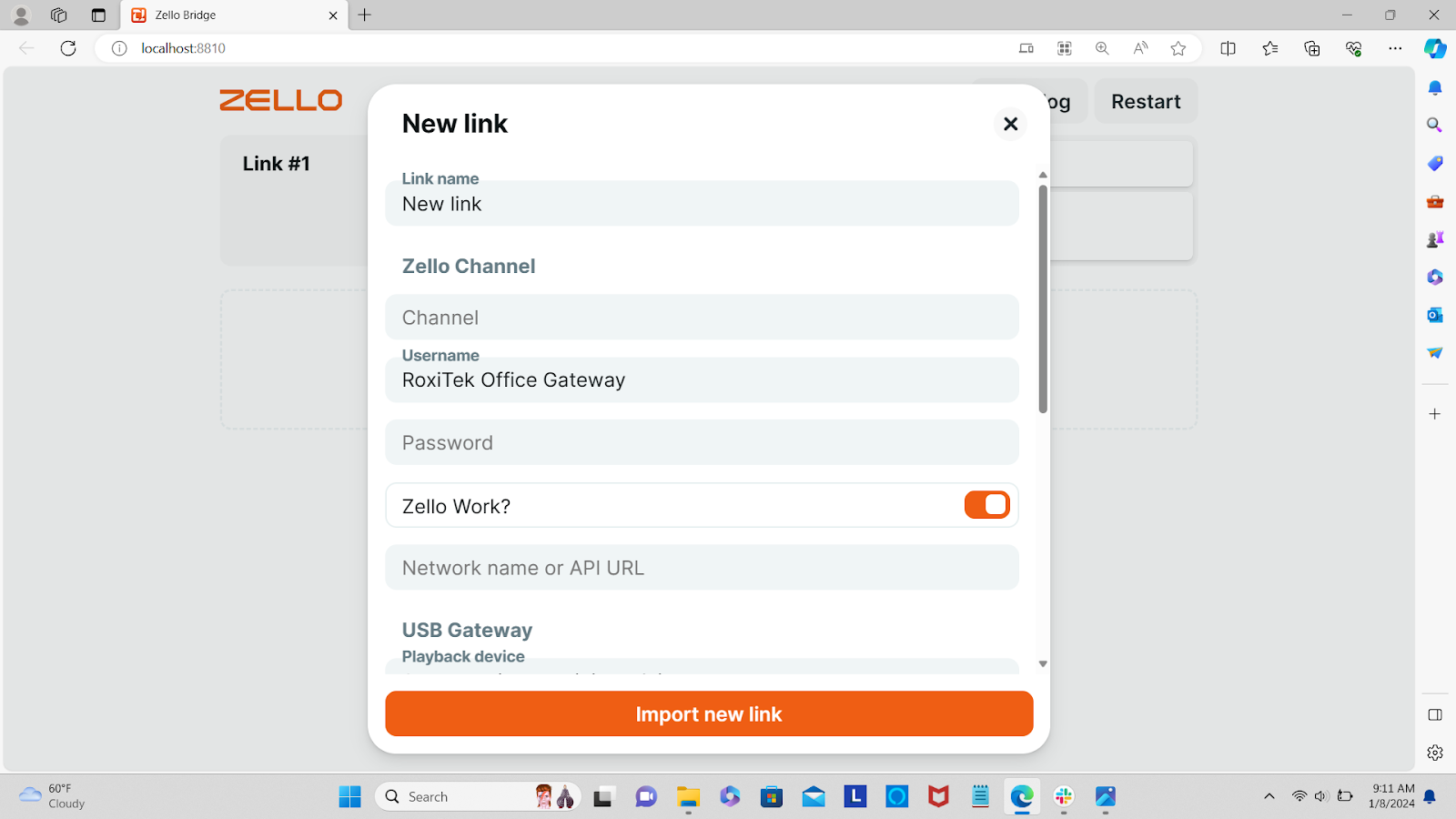

  4. If the settings file parsed successfully, a New link popup will appear. Most—but not all—of the associated fields should be completed.



  5. Fill in any missing values. Note that the gateway’s password, the channel name, and your network name will need to be manually entered.

  6. When the form is completed, click Import new link.

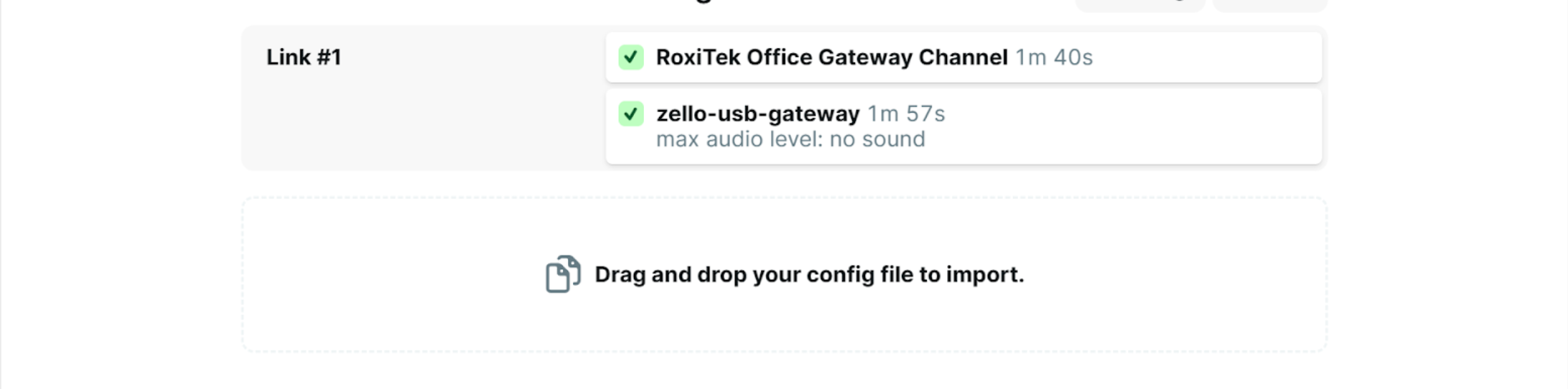

  7. When the link has successfully imported and both connectors report being online, the new link will appear in the Zello Bridge configuration. Please note it will likely take about 30 seconds for everything to successfully activate.


    If there’s an issue with the configuration file, you’ll receive an error message that notes which field is incorrect. Fix the problem values, then click Import new link again.



    If this method doesn’t work for any reason consider editing the configuration file to include a new link.

    Legacy PC app users with pre-existing gateway connections can find many of the required values in the app's Options menu. The following information can be found under Options:

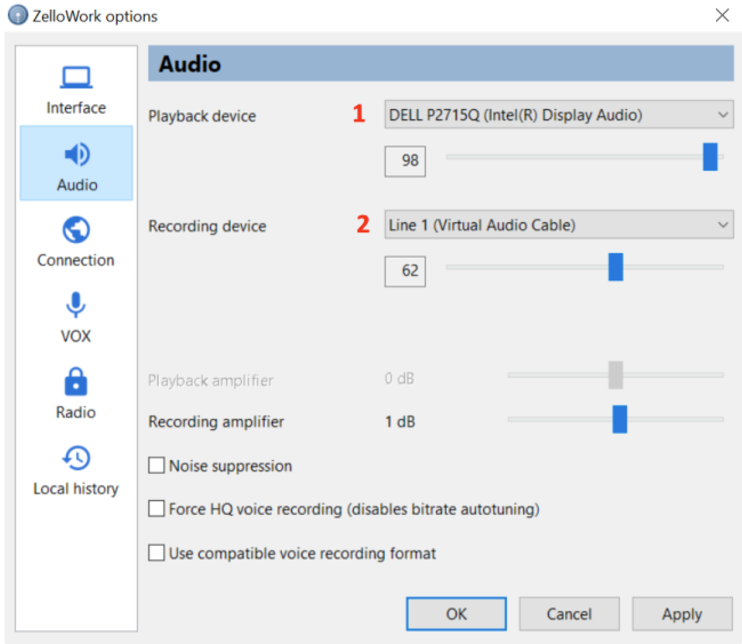

  • Audio Tab

    If either the playback device (1) or recording device (2) are missing from the configuration file, write the names in as they appear here.





    Radio Tab

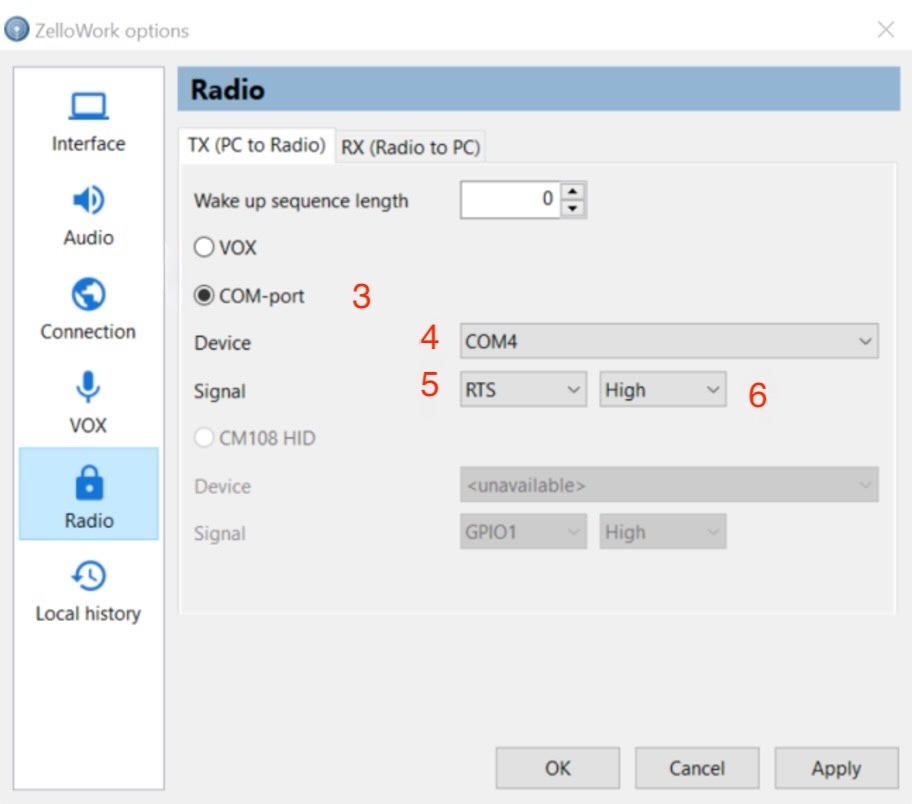

    From the TX (PC to Radio) tab, you’ll find the required values for tx_serial_port (3)*, serial_port (4), tx_line (5), and tx_active_high (6). Copy these values as they appear into the configuration file.

    *value is TRUE if tx_line and tx_active high are in use

    Switch to the RX (Radio to PC) tab and repeat for rx_serial port, rx_line*, and rx_active_high.

    *If you utilize VOX mode, leave rx_line blank.

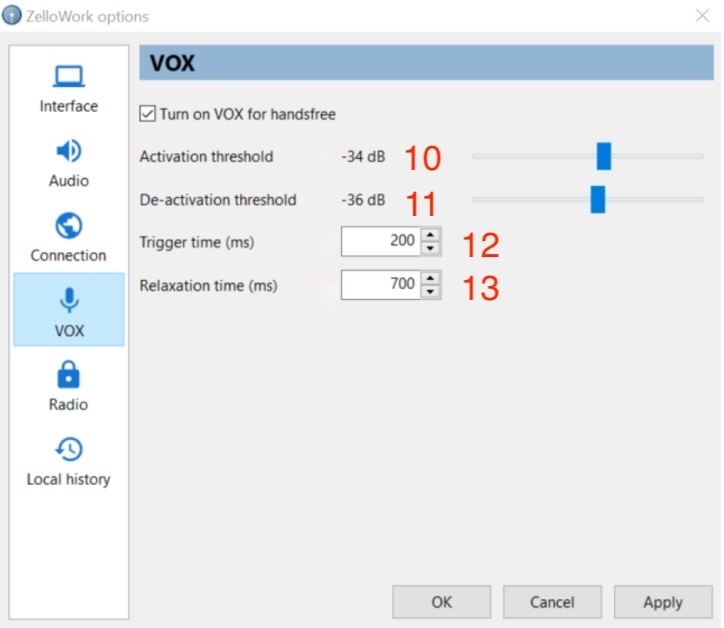

    VOX Tab

    If your network utilizes VOX mode, switch to the VOX tab and include the following information in your configuration file: activation_db (10), deactivation_db (11), trigger_time (12), and relaxation_time (13).

Troubleshooting

You may encounter a variety of errors when setting up your Bridge environment. The table below lists the possible error codes and their meanings.  If you run into trouble resolving these errors, don’t hesitate to contact our team for tailored assistance.

Error Codes

Tables can't be imported directly. Please insert an image of your table which can be found here.

Code Meaning Root Cause/Solution

Check if full-duplex mode is supported for all connectors associated with the link. If it isn’t, turn OFF full-duplex mode in your configuration.

As a reminder, full-duplex mode means messages can be sent and received at the same time.

This error means Bridge is unable to identify anything to send.

First, check your network to confirm proper connectivity. Then, consider increasing your jitter buffer.

Tables can't be imported directly. Please insert an image of your table which can be found here.

Code Meaning Root Cause/Solution

Confirm that the gateway endpoint is accessible from the Bridge host/specific local endpoint.



Confirm your JPS device is configured correctly and is reachable by the computer running Bridge.

Confirm your network connectivity.

If connected, it’s likely you’re experiencing an issue with your JPS hardware.

Your communication is likely being interrupted by one of the following:

  • MITM
  • The proxy may be unintentionally corrupting the payload
  • General connectivity issue

    • You may be experiencing one of the following:

    • Unsupported codec
    • Payload corruption

      • See your gateway's manual for more information.

      A connector is transmitting an unsupported audio format.

      Check your gateway’s manual for more information on supported audio formats.

      Your JPS gateway isn’t sending audio packets with the expected speed.

      Check your JPS device’s manual for information on related settings. Each gateway will carry unique requirements.

      Your JPS gateway temporarily stopped sending audio packets.

      Consider increasing the value of the jitter_buffer_size value in your configuration file.

      A connector temporarily stopped sending audio packets.

      Consider increasing the value of the jitter_buffer_size value in your configuration file.

      Tables can't be imported directly. Please insert an image of your table which can be found here.

      Code Meaning Root Cause/Solution

      Confirm your Zello Work username, password, and network name are correctly entered in the zellobridge.json file. If not, adjust the file, click save, then restart Bridge.

      If credentials are correctly entered, then check your network connectivity.

      An invalid opus packet was received from the Zello connection. Likely causes include one of the following:

      • MITM
      • Proxy-corrupted data
      • Other connectivity issue

        • Unable to start an outgoing message.

        If you find this occurring often, check the talk priority assigned to the user account associated with Bridge. Consider decreasing the channel talk priority of the account.

        The Zello credentials used by this Bridge connector was signed in on another client device.

        Keep in mind that a single Zello account can only be used on one device at a time.

        Tables can't be imported directly. Please insert an image of your table which can be found here.

        Code Meaning Root Cause/Solution

        Some audio samples were not recorded, resulting in chunks of silence being delivered to Bridge.

        Check your audio device for driver updates.

        Send a Log to the Zello Team

        Logs provide additional context for the error codes you’re receiving. If you find yourself unable to resolve an issue, submit a log through the Bridge interface, then email us at paidsupport@zello.com for assistance.

        To send a log from Zello Bridge:

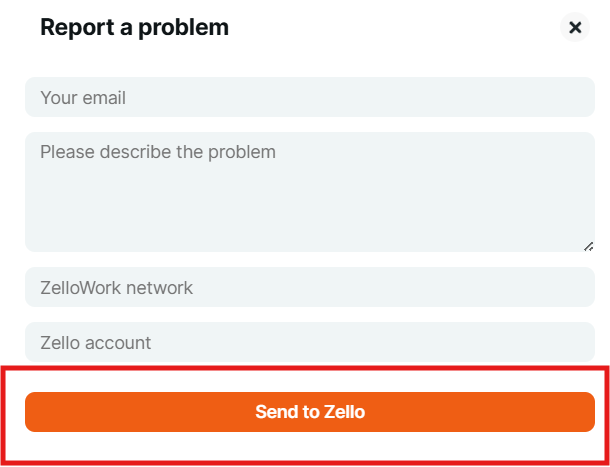

        1. From the Bridge interface, click Send log. Enter your email and describe the issue you’re experiencing. Then click Send to Zello.

        Tables can't be imported directly. Please insert an image of your table which can be found here.

        1. Email paidsupport@zello.com. Let our team know you’ve recently submitted a log, and provide any additional context you think will aid the troubleshooting process.

        Please note that we don’t monitor log submission, so it’s important that you email our team notifying us that you’ve sent a log. Additionally, it’s important that you send a log quickly after you’ve encountered an issue.

        Using VOX on Zello Bridge

        Zello Bridge also supports sharing audio without a gateway device using VOX.

        1. With a traditional two way radio, you can share audio from your radios into Zello one way.
        2. With a VOX enabled radio, you can share audio to and from Zello two ways.

        Requirements for using VOX with your radios:

        • A USB soundcard

        • Cables that connect from your radio’s microphone and speaker jacks to your sound card, functioning as a microphone and speaker input/output

        Configuration

        You will need to edit your Bridge configuration file using the instructions provided here. When using external hardware like a USB soundcard, the playback_device and recording_device Values in your config file should reference the USB soundcard. For example

        Please note: You do not need Radios to use VOX on Bridge. However, you must ensure that the playback_device  recording_device values match the audio source you intend to use, as configured in your Windows sound settings.
